How does the timing chain kit ensure accurate timing in the engine?

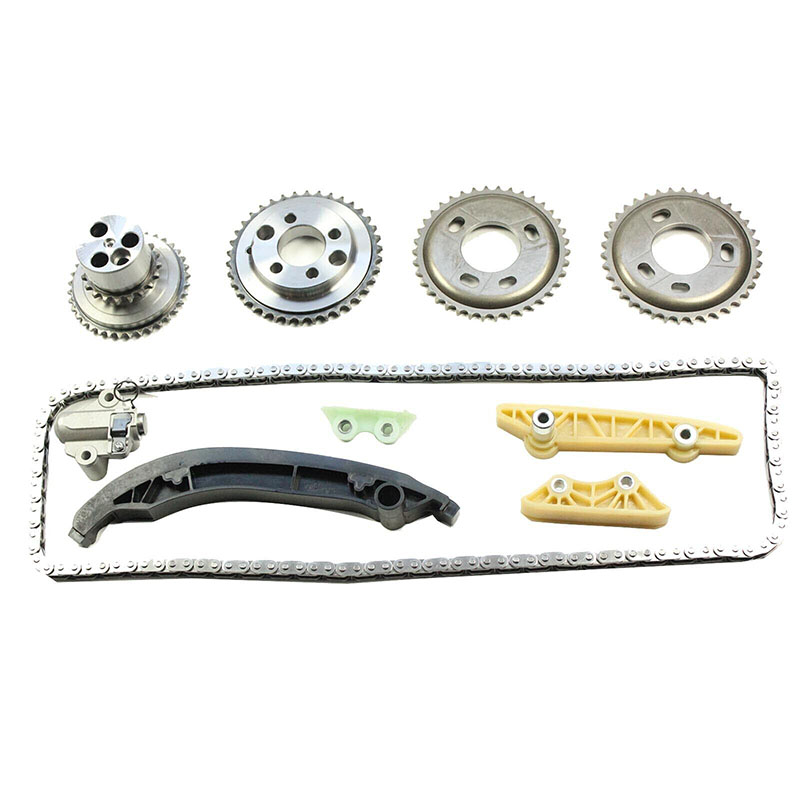

The timing chain kit is responsible for the core task of accurately coordinating the rotation angles of the crankshaft and camshaft in the engine. Its exquisite combination design ensures that every critical moment of power generation is accurate. Its accuracy first comes from the ultra-high physical properties and processing accuracy of the chain itself. The high-strength alloy steel chain is precisely manufactured and specially heat-treated, and has strong resistance to tensile deformation, ensuring that when the crankshaft rotation is transmitted to the camshaft, there will be no timing deviation due to chain relaxation or elongation. Secondly, the entire timing chain kit includes precision sprockets and guide rails.

The tooth shape and pitch of the sprocket installed on the crankshaft and camshaft ends are processed and matched extremely strictly, and mesh perfectly with the chain; at the same time, the guide rail made of high-strength engineering plastics and the automatic (or hydraulic) tensioner work together to continuously apply and dynamically adjust the tension of the chain, effectively suppressing the jitter and lateral swing of the chain during high-speed operation, preventing the risk of chain skipping or derailment, and always maintaining a constant, close and stable contact between the chain and the sprocket, which is the physical basis for maintaining phase accuracy.

Finally, careful installation and calibration are indispensable. When assembling or repairing and replacing the engine, the crankshaft timing mark and the camshaft timing mark must be accurately aligned with special tools in strict accordance with the manufacturer's specifications. At this time, the timing chain kit acts as a rigid transmission medium to firmly lock this precise alignment relationship. As the engine runs, the entire timing chain kit works smoothly under sufficient oil lubrication and cooling. The negligible elongation within its design life and the continuous compensation effect of the tensioning system ensure that the opening and closing moments of the valves are always strictly synchronized with the position of the piston, thereby ensuring that the efficiency, performance and reliability of the engine meet the design requirements.
